2-ant. system Orion XL AM 58 kHz

Acousto-Magnetic (AM) 58 kHz Electronic Article Surveillance Anti-shoplifting System

Antenna design:
Anodized aluminium profile
Can be used as an ad panel - to insert a shop advert

Features:
Perfect detection of all AM 58 kHz protecting elements
Suitable for all types of shops
Light and acoustic alarm, possibility of another external alarm
Remote service
Elimination of mutual interference with the systems that work on the same frequency in the same shopping center - the software allows for a comfortable remote synchronization with the surrounding systems that could be the source of mutual interference
Option to choose from multiple light alarm colors (RGB)
Built-in detection of signal jammers
2 programmable GPO outputs for controlling other electronic devices via the system (e.g. starting a camera, closing a door)
2 programmable GPI inputs for controlling an external system (e.g. a button to turn off the sound alarm when the store is filled with goods with security labels or a button to trigger an artificial alarm)

Antenna dimensions and weight:
Antenna dimensions: 1535 x 530 x 51 mm
Base dimensions: 539 x ​​90 mm
Insert plexiglass dimensions: 1515 x 500 x 3 mm
Antenna weight: 11.28 kg

Dimensions and weight of the central control and power supply unit:
Unit dimensions including outer cover: 422 x 201 x 69 mm (75 mm with legs)
Unit dimensions without cover: 385 x 150 x 69 mm (75 mm with legs)
Unit weight: 4.7 kg

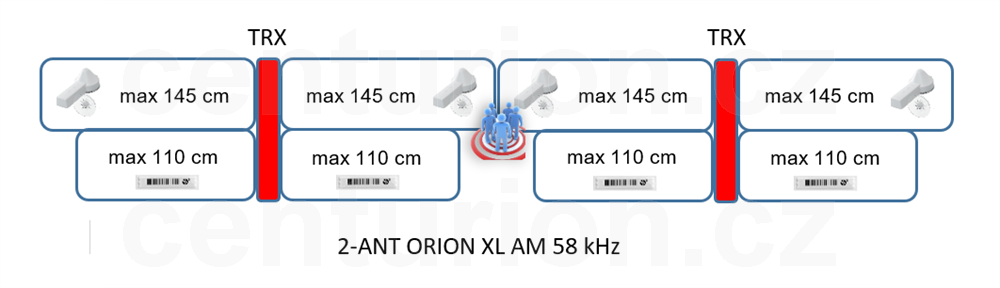

Detection distances, passage width:
up to 220 cm for labels (up to 110 cm on each side of the antenna), total coverage up to 440 cm
up to 290 cm for hard tags (up to 145 cm on each side of the antenna), total coverage up to 580 cm
(maximum detection distances in an ideal, undisturbed environment)
If detection from the outside of the antennas (backfield) is not needed, it can be turned off.

Contents of this set (configuration of this system):
2 pcs Transmitting and receiving antenna (Transceiver, TRX)
4 pcs Plexi panels
1 pc Control unit
1 pc Remote management module (built into the control unit)
1 pc Power supply 230VAC/31VDC (PSU, built into the control unit)
Online application for remote service

Optional accessories:

Customer counter

A customer counter can be ordered (must be ordered at the same time as the antennas).
It then counts people passing between the antennas (i.e. not from the outside of the antennas).
The outputs from the counter can be monitored via an online application.

Aluminum foil bag detection - metal detection
Metal detection can be ordered (must be ordered at the same time as antennas)
Output is discreetly to wireless light (via Bluetooth)
