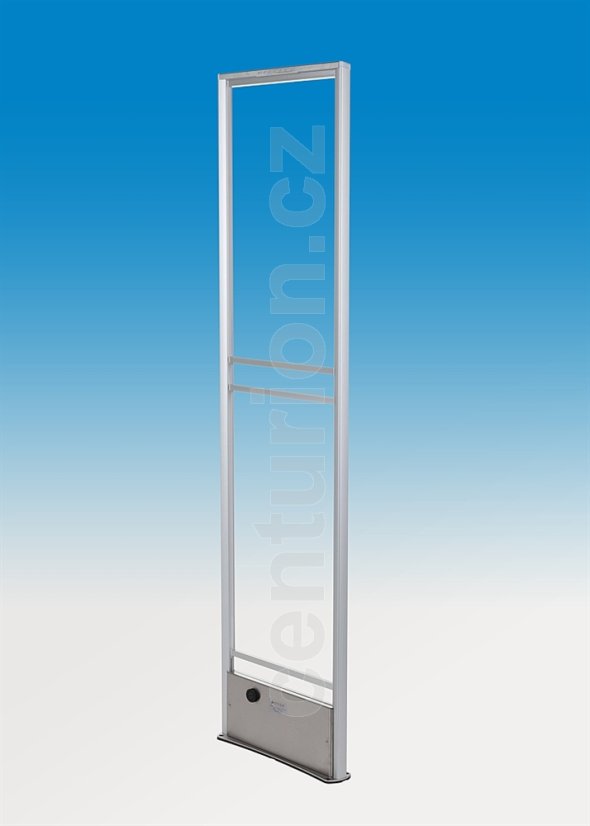

1-antenna AM 58 kHz PEGASUS (TRX) system

Acousto-Magnetic (AM) 58 kHz Electronic Article Surveillance Anti-shoplifting System

Technology:
Acousto-Magnetic (AM) 58 kHz

Antenna design:
Metal profile

Features:
Perfect detection of all AM 58 kHz protecting elements
Suitable for all types of shops
Light and acoustic alarm, possibility of another external alarm

Dimensions:
Antenna Dimensions: 1 621 x 362 x 40  mm
Base Dimensions: 404 x 92 mm

Basic Configuration:
1-antenna (TRX) - transmitter and receiver is connected to one common antenna - transceiver (TRX), detection field is on both sides of the antenna.

Expanded configuration:
For wider passages, the system can be expanded by adding more antennas

Detection distances, passage width:
up to 240 cm for hard tags (120 cm on each side of the antenna)
up to 180 cm for labels (90 cm on each side of the antenna)
(maximum detection distance in ideal undisturbed environment)
