Popular single-antenna goods protection system with perfect detection and elegant design. Suitable, for example, for single-leaf doors or passages where space is tight. Alternatively, on the contrary, the possibility of expanding to a two- and multi-antenna system with a wide overall coverage. More

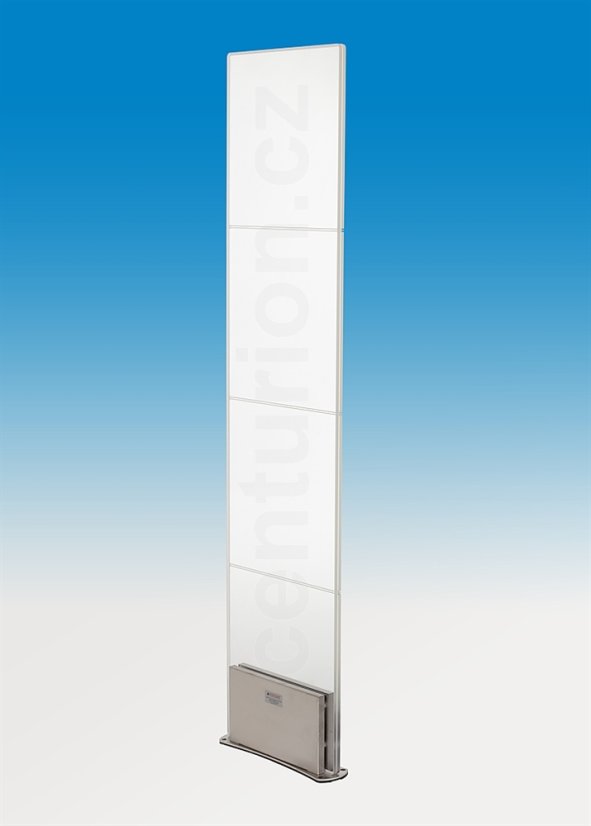

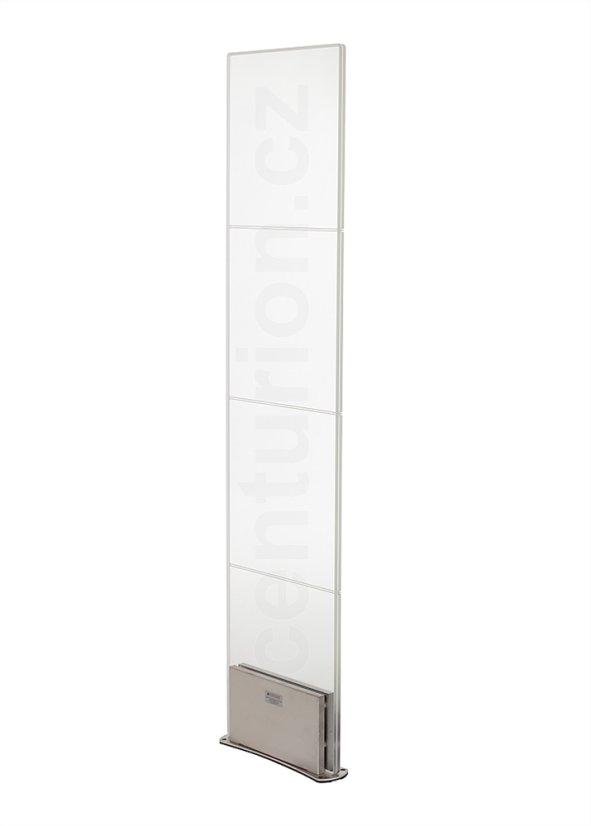

Radio Frequency (RF) 8.2 MHz Electronic Article Surveillance System
Popular single-antenna goods protection system with perfect detection and elegant design. Suitable, for example, for single-leaf doors or passages where space is tight. Alternatively, on the contrary, the possibility of expanding to a two- and multi-antenna system with a wide overall coverage.
Technology:
Radio Frequency (RF) 8.2 MHz
Features:
Perfect detection of all RF 8.2 MHz protecting elements
Suitable for all types of shops
Antenna design:
Plexiglass

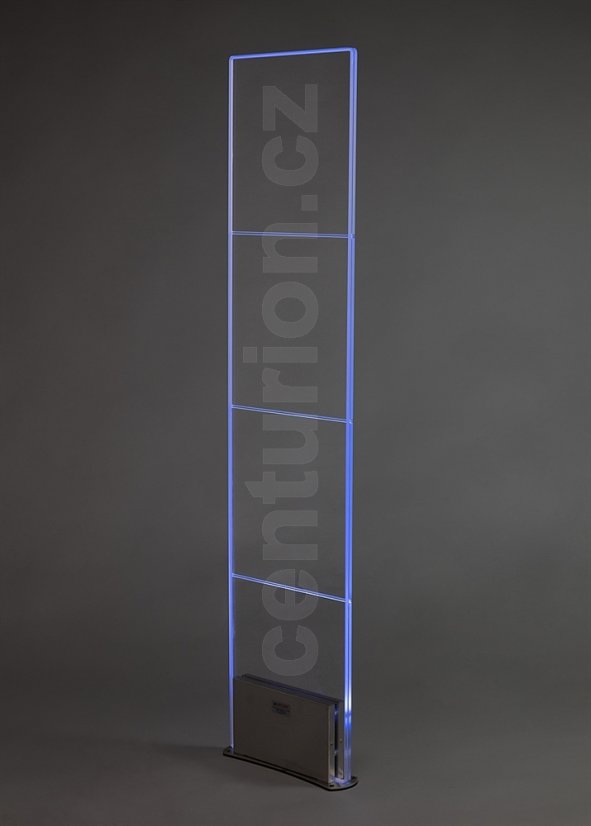

Alarm and antenna backlight colors
Standard (this antenna): red alarm and blue antenna backlight or inverse - blue alarm and red antenna backlight
With RGB module (optional): any alarm and antenna backlight color, e.g. red alarm and green antenna backlight
Backlight can be turned off.
Antenna dimensions and weight:
Antenna Width: 370 mm
Antenna thickness (plexiglass thickness): 20 mm
Antenna Dimensions: 1 619 x 362 x 40 mm
Base Dimensions: 383 x 92 mm
Antenna weight: 5,5 kg
Basic Configuration (this system):
1-antenna (TRX) - transmitter and receiver is connected to one common antenna - transceiver (TRX), detection field is on both sides of the antenna.
Expanded configuration:
For wider passages, the system can be expanded by adding more antennas TRX.
Thus, for example, 2-antenna (TRX+TRX) or 3-antenna (TRX+TRX+TRX)
Kit contents (this system configuration):
1 pc transmitting and receiving antenna (Transceiver, TRX)
Detection distances, passage width:
up to 240 cm for hard tags (120 cm on each side of the antenna)
up to 200 cm for labels (100 cm on each side of the antenna)
(maximum detection distance in ideal undisturbed environment)
| Operating Frequency | RF 8.2 MHz |
|---|---|
| Series | Pegasus RF |
| Aisle width | 1 m, 1,6 m, 1,8 m, 2 m |
| Remote service | The remote service module can be ordered |
| Number of antennas | 1 |
| Antenna design | Plexiglass |
| People counter | People counter external only |
| Condition | New |
| Advertising panels | Only sleeves over the antenna |
| Operating Frequency | RF 8.2 MHz |
|---|---|
| Series | Pegasus RF |
| Aisle width | 1 m, 1,6 m, 1,8 m, 2 m |
| Remote service | The remote service module can be ordered |
| Number of antennas | 1 |
| Antenna design | Plexiglass |
| People counter | People counter external only |
| Condition | New |
| Advertising panels | Only sleeves over the antenna |
